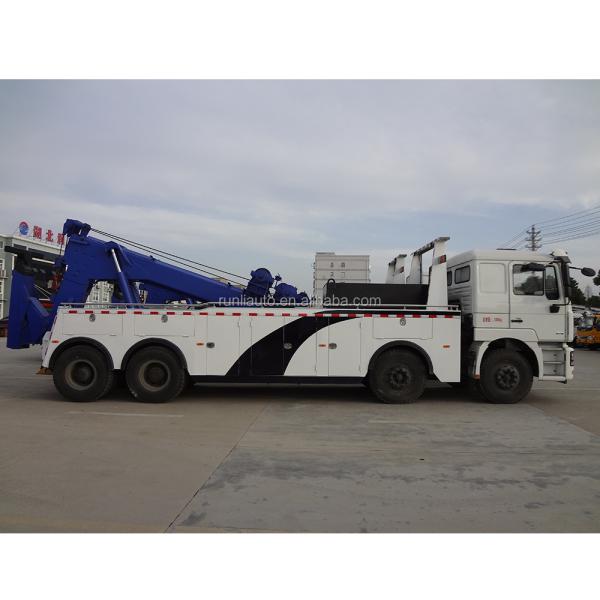

SHACMAN 12 Wheels Rotator Tow Truck 6x4 Driving Tow Wrecker Truck 50 Ton

Cabin

A/C installed,2~3 persons,LHD

No load(kg)

Curb Weight

Front axle

7000

Rear axle

18000*2

Full load

Max. Overall Weight

Overall Dimensions(mm)

Length

10900

Width

2500

Height

3450

Wheel base(mm)

Track(mm)

2022/1830

F/R Suspension(mm)

1500/2200

A/D Angle(°)

16/25

Driving Model

6*4

Tyre

12.00R20 steel tire

Max. Speed(km/h)

102

Max. Grade-ability(%)

30

Min. Turning Diameter(m)

22.6

Min. Ground clearance(mm)

310

Engine

Model

WP10.336

Power(kw)

247

Displacement(mL)

9726

Transmission

10 forwards&2 reverses

Wrecker Equipment

Max. Towing Weight(kg)

25000

Lifting System

Max. Lifting Weight(kg)

7470

Max. Lifting Weight under all extension(kg)

5500

Lifting Weight in Situ(kg)

16000

Effective Length of Corbeling Arm(mm)

1460~3099

Extend-retract of Corbeling Arm(mm)

1639

Slope Angle of Corbeling Arm(°)

7

Folding angle under no load(°)

-7~93

Folding angle under load(°)

-10~2

Max. Ground Distance(mm)

900

Hoisting System

Max. Hoisting Weight(kg)

16000

Max. Hoisting Weight under all extension(kg)

8000

Extension Distance of Oil Cylinder(mm)

3300

Length of crane Arm(mm)

8470

Max. Hoisting Height(mm)

6500

Max. Hoisting Angle(°)

5.0~33

Winch

No.

2

Curb Traction/Per(KN)

100

DN of Steel Rope(mm)

18

Length of Steel Rope(m)

40*2

Min. Line Speed(m/min)

5

Outrigger

No.

2

Outrigger Span(mm)

1440

Landing Strength(KN)

80*2

Lifting Forks

5 pairs

Lifting fork base

1 pair

Jump-start cables

12~24 Volts

Electric system

Rear working lamp(stop,tail,turning)

3

Revolving beacon

1

Lamps for license plate

1 set

Pneumatic hoses

1 set

Key Parts

Multitandem Valve

Italy Hydro control

Balance Valve

Italy Hydro control

Bump

Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd

Hydraulic cylinder

Germany Rexroth technology and exported sealing rings

Hydraulic Winch

Jiashan Huachuang Hydraulic technology Co., Ltd.

Hydraulic Hose

Tianhe,Guangdong Province

Hydraulic Joint

Germany technology and exported Sealing rings

Hydraulic Lock

Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.

Swivel Joint

Yangzhou Zhongmei Pressure Parts Co.,Ltd.

Compartment plate

One-step Modeling by Germany 3P2A 1000T punching machine
